10.1" Touch DVR Monitor 360° BSD AI Blind Spot Safety System with Straight LED Flashing Alarm for Forklifts, Trucks, Agricultural Vehicles
جزئیات محصول:
| محل منبع: | شنژن، چین |
| نام تجاری: | Vanwin Tracking |
| گواهی: | CE/FCC/RoHS |
| شماره مدل: | VW-360S |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 عدد |
|---|---|
| قیمت: | USD300-USD400 |
| جزئیات بسته بندی: | بسته بندی جعبه کارتن خنثی به طور پیش فرض. اگر سفارش به 300 عدد برسد، بسته سفارشی در دسترس است. چاپ آ |
| زمان تحویل: | 2-3 روز برای نمونه ها ، 15-30 روز برای سفارشات بزرگ |
| شرایط پرداخت: | T/T یا Western Union یا Paypal |
| قابلیت ارائه: | 30،00 عدد در ماه؛ |
|
اطلاعات تکمیلی |
|||
| نوع محصول: | سیستم ایمنی نقطه کور 360 درجه BSD AI | اندازه: | صفحه نمایش 10.1 اینچی IPS HD |
|---|---|---|---|
| تحمل ولتاژ: | 12 ولت / 24 ولت | خروجی ویدیو: | AHD ، CVBS ، VGA |
| قطعنامه: | 720p ، 1080p | میدان دید: | 360 درجه |
| درجه ضد آب دوربین: | IP69 | قالب فشرده سازی: | H.264/H.265 |
| تعداد دوربین ها: | 4 | نوع صفحه نمایش: | 16:9 |
| تصاویر چهارگانه: | پشتیبانی کنید | زاویه دید: | دید پرنده 360 درجه |
| برجسته کردن: | 10.1 inch touch DVR monitor,360° BSD blind spot safety system,LED flashing alarm for forklifts |
||
توضیحات محصول
10.1" Touch DVR Monitor 360° BSD AI Blind Spot Safety System with Straight LED Flashing Alarm for Forklifts, Trucks, Agricultural Vehicles

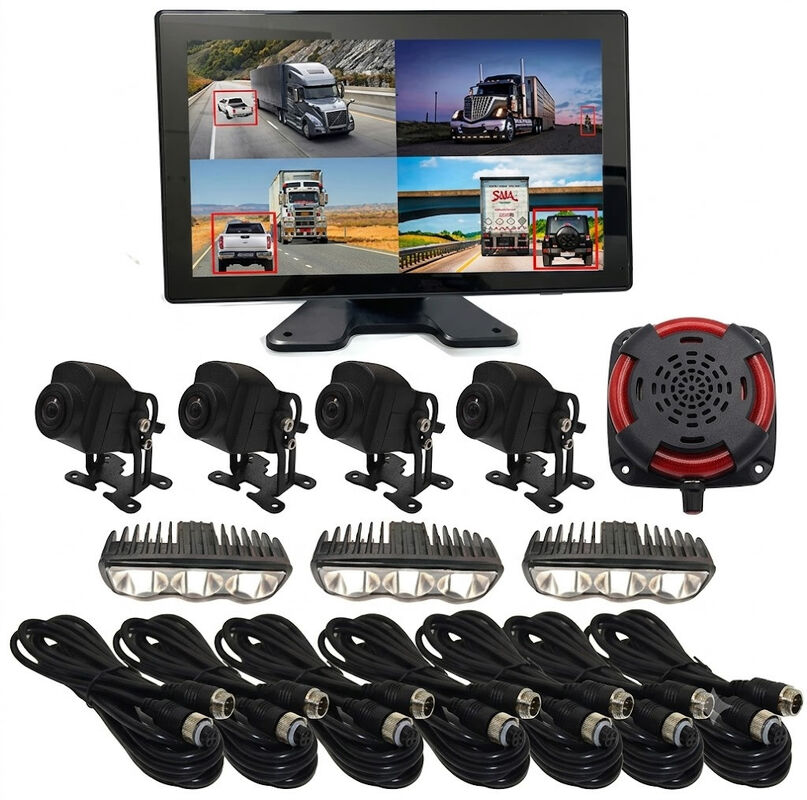

This safety monitoring system is specially designed for heavy machinery (forklifts, bulldozers, excavators, loaders) to enhance operational safety. It combines a touch- screen BSD monitor, 4CH AHD1080Pcameras input, LED security area warning lights, and an audible- visual alarm to eliminate blind spots, prevent collisions, and improve work efficiency.
Products Advantages:
1. Active AI BSD Detection & Quad-Angle Blind Spot Elimination
The Power of AI: The system is built with an advanced AI algorithm that intelligently detects pedestrians and vehicles in real-time.
True 360° Elimination: Combined with 4x AHD 1080P cameras capturing 140°(H)/170°(D) wide angles, it completely eliminates dangerous blind spots around heavy machinery.
2. Double-Safeguard: High-Decibel Audio & Flashing Red LED Security Alarms
Multi-Sensory Alert: Once a hazard enters the BSD zone, the system triggers both a high-decibel audible alarm and bright flashing red LED lights (Straight & ARC lights).
Dual-Direction Warning: This simultaneously warns the vehicle operator inside the cabin and alerts nearby ground crew working in complex scenarios.
3. All-in-One 4CH HD Touch DVR with 256GB Local Evidence Lock

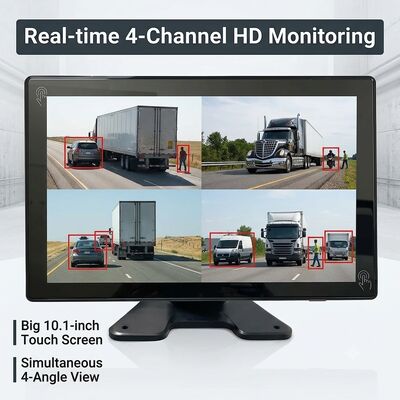

Full Touch OSD: The high-resolution IPS touch screen supports 4-channel real-time split display and seamless local playback.
No-Dispute Video Evidence: Supports up to 256GB TF card background recording. In case of any site accidents or false claims, you have high-definition video proof saved.
4. Heavy-Duty Ruggedness Built for Extreme Off-Road Workplaces
Weatherproof & Anti-Vibration: Features IP67 waterproof metal cameras that withstand high-pressure washing, heavy dust, mud, and extreme temperatures from -25°C to 70°C.
Interference-Free Connection: Uses heavy-duty 4-pin aviation cables (5M, 10M, 15M, 20M options) to guarantee stable video transmission, even under severe engine vibrations.
5. Highly Customizable & Easy Fleet Deployment
Universal Voltage (12V-36V): Perfectly matches the electrical systems of forklifts, excavators, bulldozers, and loaders.
Professional Fleet Integration: Features automatic trigger screen switching, reverse lines, screen mirroring, and customizable camera parameters (mirror/non-mirror/guideline switches) to fit any fleet's operational habits.
Products Specifications:
| project | Function introduction | Performance |
| system | Operating language | Chinese,English,Japanese, Korean, Spanish, Arabic, Italian, Turkish, etc |
| Operating interface | Graphic menu operation | |
| Operation method | Touch operate | |
| Video input | Video input | 4 CH AHD HD 1080P/720P |
| Video format | 1CH/4CH videos Switching, are stored separately, Front (front), back (back), left (left), right (right), park (parking monitoring) | |
| Video display | real-time display | 7inch/9inch/10.1 HD IPS screen options, |
| Resolution | 1024*600; | |
| Video display | Play locally, check at any time,or take out TF card to play on computer | |
| screen protector | Can be set for 1 minute/5 minutes/off | |
| Trigger display | Trigger display | Automatically switch to the large -screen perspective of the corresponding camera |
| Video storage | TF card | Class10 U1, minimum 64GB, maximum support 256GB |
| Power part | power input | The working voltage is 24V, which has power supply circuits such as rushing, overload, over voltage, over voltage, and short circuit, which is suitable for the power environment of various vehicles |
| Overall power consumption | Engine detection | ACC detection line |
| 4 CH video | Smaller than 10W (screen display, 4CH camera video) | |
| other | Operating temperature | -25 ~ 70 degrees |
| Reverse wire | CH1,CH2,CH3,CH4 | |
| Screen mirror/flip | 4Channels supports mirror/ flip display set | |
| License plate | support | |
| time setting | support | |
| Stop monitoring | Can be set off/1/2/5/10 hours | |

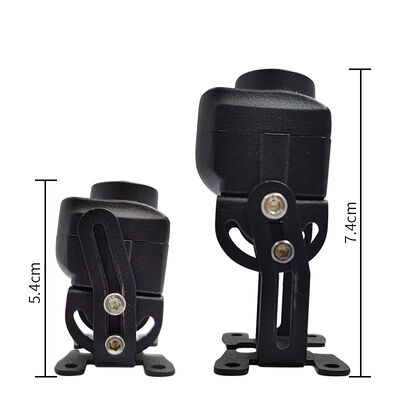

| Model | Backup Camera(optional) | |
| Material | Metal | |
| Chip sensor | 1/2.9” | |
| Resolution | 1920*1080 | |
| View angle | 90° - 180° | |
| IR light | Different models with different IR pcs option | |
| TV system | PAL/NTSC option | |
| Waterproof | IP67 | |
| Connector | 4pin aviation connector | |
| Function | Support to customized mirror/non-mirror/Guideline/AHD720/1080pswitch | |
| Warranty | 12 months | |
| Power supply | DC12V-24V | |
FAQ
Q1: Does the AI system only detect humans, or does it also detect vehicles and other obstacles?
A: Our advanced AI deep learning algorithm is specifically optimized to detect both pedestrians (standing, walking, or crouching) and vehicles (such as forklifts, trucks, and cars) in real-time. This minimizes false alarms from static non-hazard objects like walls or pillars.
Q2: What is the effective AI BSD detection range?
A: The standard reliable detection range is up to 5 meters for pedestrians. The detection zones can be customized and calibrated through the 10.1" touch screen interface to fit your specific machinery dimensions.
Q3: Can this system handle severe vehicle vibrations and harsh weather?
A: Absolutely. The system is built for heavy industries. The cameras feature an IP67 waterproof rating and rugged metal housing. Additionally, we use heavy-duty, screw-locked M12 4-pin aviation cables that prevent loose connections or signal drops, even under extreme vibrations from bulldozers or excavators.
Q4: Does it support continuous loop recording (DVR function)?
A: Yes, the monitor has a built-in DVR function supporting up to 256GB Class 10 Micro TF cards. It continuously records all 4 channels (Front, Rear, Left, Right) in AHD 1080P. This provides crucial video evidence in case of any accidents or liability disputes.
Q5: Can we customize the system (Logo, UI, Cables)?
A: Yes, as a professional manufacturer, we support extensive OEM/ODM services. We can customize your company's boot logo, modify the user interface (UI), and offer different aviation cable lengths (5M, 10M, 15M, or 20M options) depending on your fleet size.
Q6: What is the power supply compatibility?
A: The system supports a wide voltage input of DC 12V - 36V for the monitor and DC 12V - 24V for cameras and lights. This wide range makes it universally compatible with forklifts, trucks, tractors, harvesters, excavators, and other industrial machinery.

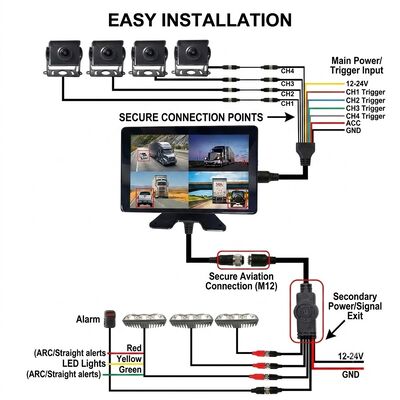

Q7: Is the installation complicated? Do you provide a wiring guide?
A: No, the system uses an error-proof, color-coded wiring harness and plug-and-play M12 aviation connectors. Every kit comes with an easy-to-follow user manual and wiring diagram. Most fleet technicians can complete the setup within 1 to 2 hours.
