AI Blind Spot Detection Camera (BSD) with Pedestrian & Cyclist Alert – 1080p IP69K for Commercial Trucks
جزئیات محصول:
| محل منبع: | شنژن، چین |
| نام تجاری: | Vanwin Tracking |
| گواهی: | CE/FCC/RoHS |
| شماره مدل: | VW-413BSD |
پرداخت:
| مقدار حداقل تعداد سفارش: | 5 عدد |
|---|---|
| قیمت: | negotiated |
| جزئیات بسته بندی: | بسته بندی جعبه کارتن خنثی به طور پیش فرض. اگر سفارش به 300 عدد برسد، بسته سفارشی در دسترس است. چاپ آ |
| زمان تحویل: | 2-3 روز برای نمونه ها ، 15-30 روز برای سفارشات بزرگ |
| شرایط پرداخت: | T/T یا Western Union یا Paypal |
| قابلیت ارائه: | 5،0000 کامپیوتر در هر ماه |
|
اطلاعات تکمیلی |
|||
| ویژگی های محصول: | پشتیبانی از AI ADAS BSD DMS | حالت چیپ: | دوربین AHD/CMOS/SONY CCD |
|---|---|---|---|
| تعادل سفید: | خودکار | فاصله IR: | ≥5 متر |
| تعداد LED های IR: | ال ای دی 7 عدد | خروجی ویدیو: | AHD استاندارد، خروجی 1080P |
| گواهی: | CE/FCC/RoHS | لنز: | 120-150 درجه |
| BSD: | ماژول BSD داخلی | ولتاژ: | DC 12V-24V |
| زمان تست: | بیش از 48 ساعت | دمای عملیاتی: | -20 ° C ~+70 درجه سانتیگراد |
| مأمورین: | خوش آمدید | گارانتی: | 1 سال |
توضیحات محصول

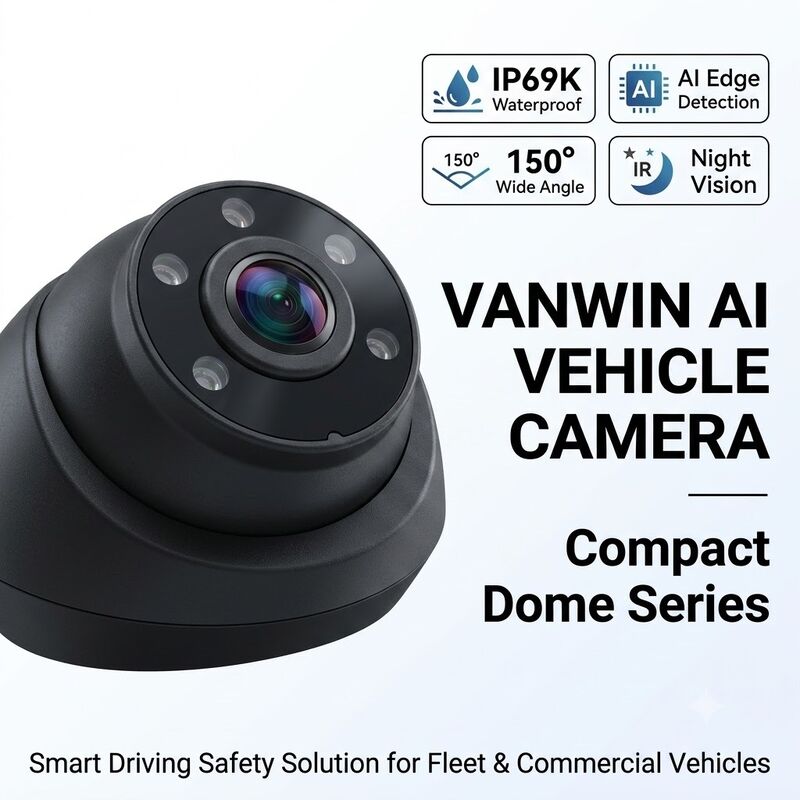

AI Vehicle Camera (VW-413) - Smart Vision for Safer Roads
Powered by advanced edge AI technology, the VW-413 is a compact, heavy-duty AI vehicle surveillance camera designed to accurately identify vehicles, pedestrians, animals, and road hazards in real-time. Featuring a unique 45° compact private mold design, it provides superior blind spot protection for commercial vehicle fleets, trucks, and public transit.
Advanced Features & Core Capabilities
- Integrated Edge AI Processor: Supports high-speed real-time video analysis up to 60 FPS locally with an onboard neural network accelerator.
- High-Performance Imaging: Delivers clear 1080P resolution (optional 4K HDR) with ultra-low light performance for superior infrared night vision.
- All-Weather & Industrial Durability: IP69K waterproof rating, passed a strict 240-Hour Salt Spray Test. Operates reliably in extreme fleet environments from -30°C to +85°C.
- Plug & Play Integration: Supports CAN, LIN, and Ethernet interfaces with OTA (Over-the-Air) firmware update capabilities.
- Data Security & Privacy: Edge computing with local data processing secured by AES-256 encryption.
Core Technical Specifications
| Parameter | Specification Details |
|---|---|
| Housing Material | Black Industrial-Grade Metal Housing |
| Design Blueprint | Exclusive Private Mold Design (OEM Available) |
| Lens & Real FOV | 120° / 150° (Real Field Angle) |
| IR LEDs / Night Vision | 5 High-Power Infrared LEDs |
| Power Input | DC 12V |
| System Type | PAL / NTSC Switchable |
| Image Mode | Mirror / Normal Switchable |
| Connector & Cable | 4-Pin Aviation Double Shielded Cable (Supports Custom Calibration Cable) |
| Waterproof Rating | IP69K Waterproof |
| Salt Spray Test | 240 Hours Severe Environmental Resistance |
| Dimensions | 106mm × 53mm × 53mm with 45° Ergonomic Angle |

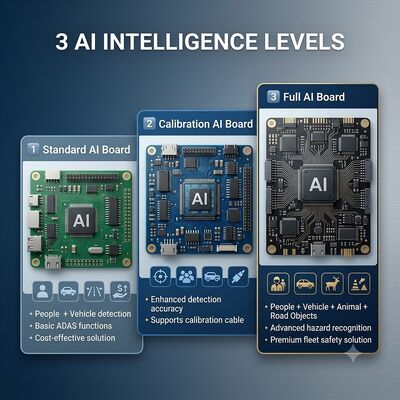

AI Mainboard Configuration Options
- Standard AI Mainboard: Real-time identification for People + Vehicles. Features basic ADAS algorithms. Highly cost-effective.
- Calibration AI Mainboard: Real-time identification for People + Vehicles. Supports custom calibration cable for improved accuracy (+ $35 Upgrade).
- Full AI Mainboard (Advanced): Premium real-time identification for People + Vehicles + Animals + Road Obstacles. Advanced hazard detection, best for commercial fleets.
Application Scenarios
This smart vehicle camera is widely deployed in: Truck Fleets, Buses, Delivery Vans, Construction Vehicles, Agricultural Machinery, and Special Purpose Vehicles.
Frequently Asked Questions (FAQ)
Q1: What are the main benefits of the VW-413's 45° private mold design?
A: The VW-413 features an exclusive 45° compact private mold housing. This industrial-grade design makes it perfect for side-view or rear-view mounting on large trucks and commercial vans, reducing aerodynamic drag while providing a perfect angle for active blind spot detection without protruding significantly.
Q2: Can this camera withstand harsh sea port or winter road environments?
A: Yes, absolutely. The VW-413 has successfully passed a rigorous 240-hour industrial salt spray test and features an IP69K waterproof rating. This ensures complete immunity to high-pressure washdowns, heavy rain, coastal corrosion, and salt-treated winter roads.
Q3: How does the AI hazard detection trigger alerts?
A: Equipped with an integrated AI edge processor, the camera runs specialized computer vision algorithms locally up to 60 FPS. It instantly categorizes and detects targets—triggering real-time warnings for Pedestrian Detection, Cyclist Alerts, Vehicle Warnings, and Obstacle Detection to assist the driver immediately.
